Cleveland

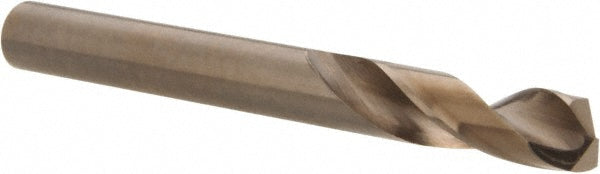

0.2677" Cobalt Screw Machine Drill Bit, Coated, 135° point - Cleveland C14810
MFR# C14810Series 2133
$7.25List $9.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description
The Cleveland C14810 is a 0.2677" Cobalt Screw Machine drill bit with a Coated finish, 135° point. Suited for alloy, aluminum. Series 2133.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeHeavy Duty
Drill bit size0.2677
Drill bit size range0.2500 to 0.3000
Drill length typeScrew Machine
Drill point angle135
Flute length (mm)34.00
Flute typeSpiral
Material gradeM42
Number of flutes2
Overall length2.9134
Point typeSplit
Primary workpiece materialAlloy; Aluminum
Shank diameter0.2677
Shank length1.5748
Shank typeStraight-Cylindrical
Specification designationANSI; DIN
Specification numberDIN 1897
Spiral typeRegular
StandardsASME B94.11M
Tool materialCobalt
Web configurationParallel
Web thinningWeb-Thinned
