Cleveland

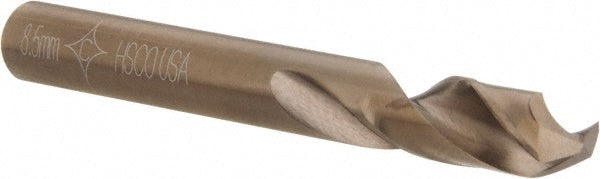

0.3346" Cobalt Screw Machine Drill Bit, Coated, 135° point - Cleveland C14813
MFR# C14813Series 2133
$10.41List $13.11
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description
The Cleveland C14813 is a 0.3346" Cobalt Screw Machine drill bit with a Coated finish, 135° point. Suited for alloy, aluminum. Series 2133.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeHeavy Duty
Drill bit size0.3346
Drill bit size range0.3000 to 0.3500
Drill length typeScrew Machine
Drill point angle135
Flute length1.4570
Flute typeSpiral
Material gradeM42
Number of flutes2
Overall length3.1100
Point typeSplit
Primary workpiece materialAlloy; Aluminum
Shank diameter0.3346
Shank length1.6535
Shank typeStraight-Cylindrical
Specification designationANSI; DIN
Specification numberDIN 1897
Spiral typeRegular
StandardsASME B94.11M
Tool materialCobalt
Web configurationParallel
Web thinningWeb-Thinned
