Cleveland

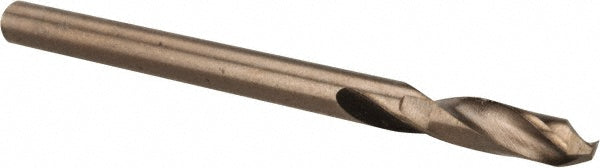

0.1181" Cobalt Screw Machine Drill Bit, Coated, 135° point - Cleveland C14821
MFR# C14821Series 2133
$3.71List $4.76
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description
The Cleveland C14821 is a 0.1181" Cobalt Screw Machine drill bit with a Coated finish, 135° point. Suited for alloy, aluminum. 5/8 flute length. Series 2133.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit gradeHeavy Duty
Drill bit size0.1181
Drill bit size range0.1000 to 0.1500
Drill length typeScrew Machine
Drill point angle135
Flute length in5/8
Flute typeSpiral
Material gradeM42
Number of flutes2
Overall length1.8110
Point typeSplit
Primary workpiece materialAlloy; Aluminum
Shank diameter0.1181
Shank length1.1811
Shank typeStraight-Cylindrical
Specification designationANSI; DIN
Specification numberDIN 1897
Spiral typeRegular
StandardsASME B94.11M
Tool materialCobalt
Web configurationParallel
Web thinningWeb-Thinned
