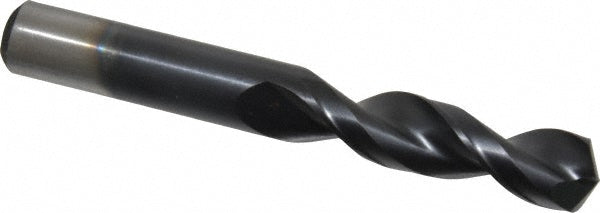

15/32" Cobalt Drill Bit, TiAlN, 135° point - Cleveland C15076

Cleveland

15/32" Cobalt Drill Bit, TiAlN, 135° point - Cleveland C15076

MFR# C15076Series 2175A

$56.84List $72.90 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size15/32
CoatingTiAlN

Description

The Cleveland C15076 is a 15/32" Cobalt drill bit with a TiAlN finish, 135° point. Suited for aluminum, brass, carbon steel, cast iron, nickel alloy, plastics, stainless steel, tool steel. 2-1/8 flute length, 3-5/8 overall length. Series 2175A.

Specifications

Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit size in15/32
Drill bit size range0.4500 to 0.5000
Drill point angle135
Flute length in2-1/8
Flute typeParabolic
Material gradeM42
Overall length in3-5/8
Point typeSplit
Primary workpiece materialAluminum; Brass; Carbon Steel; Cast Iron; Nickel Alloy; Plastics; Stainless Steel; Tool Steel
Shank diameter0.4688
Shank typeStraight-Cylindrical
Specification designationANSI
Tool materialCobalt
Web configurationParallel
Web thinningWeb-Thinned
