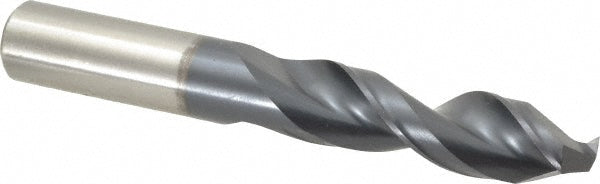

35/64" Cobalt Drill Bit, TiAlN, 135° point - Cleveland C15081

Cleveland

35/64" Cobalt Drill Bit, TiAlN, 135° point - Cleveland C15081

MFR# C15081Series 2175A

$79.41List $101.84 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size35/64
CoatingTiAlN

Description

The Cleveland C15081 is a 35/64" Cobalt drill bit with a TiAlN finish, 135° point. Suited for aluminum, brass, carbon steel, cast iron, nickel alloy, plastics, stainless steel, tool steel. 2-1/2 flute length, 4 overall length. Series 2175A.

Specifications

Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0012 in
Drill bit size in35/64
Drill bit size range0.5000 to 0.6000
Drill point angle135
Flute length in2-1/2
Flute typeParabolic
Material gradeM42
Overall length in4
Point typeSplit
Primary workpiece materialAluminum; Brass; Carbon Steel; Cast Iron; Nickel Alloy; Plastics; Stainless Steel; Tool Steel
Shank diameter0.5469
Shank typeStraight-Cylindrical
Specification designationANSI
Tool materialCobalt
Web configurationParallel
Web thinningWeb-Thinned
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
