#22 Cobalt Drill Bit, TiAlN, 135° point - Cleveland C15112

Cleveland

#22 Cobalt Drill Bit, TiAlN, 135° point - Cleveland C15112

MFR# C15112Series 2175A

$13.85List $17.77 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
CoatingTiAlN

Description

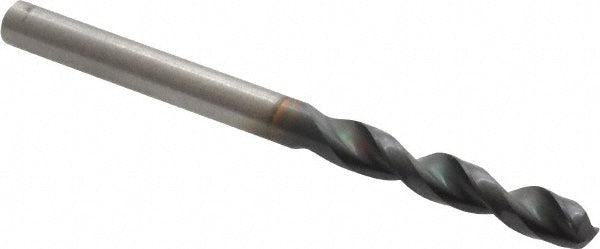

The Cleveland C15112 is a #22 Cobalt drill bit with a TiAlN finish, 135° point. Suited for aluminum, brass, carbon steel, cast iron, nickel alloy, plastics, stainless steel, tool steel. 1-1/16 flute length, 2-1/8 overall length. Series 2175A.

Specifications

Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit size0.1570
Drill bit size range0.1500 to 0.2000
Drill bit size wire#22
Drill point angle135
Flute length in1-1/16
Flute typeParabolic
Material gradeM42
Overall length in2-1/8
Point typeSplit
Primary workpiece materialAluminum; Brass; Carbon Steel; Cast Iron; Nickel Alloy; Plastics; Stainless Steel; Tool Steel
Shank diameter0.1570
Shank typeStraight-Cylindrical
Specification designationANSI
Tool materialCobalt
Web configurationParallel
Web thinningWeb-Thinned
