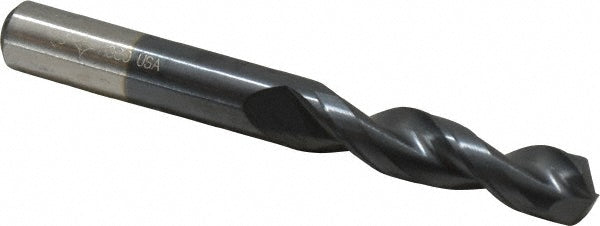

Letter U Cobalt Drill Bit, TiAlN, 135° point - Cleveland C15150

Cleveland

Letter U Cobalt Drill Bit, TiAlN, 135° point - Cleveland C15150

MFR# C15150Series 2175A

$40.47List $51.90 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
CoatingTiAlN

Description

The Cleveland C15150 is a Letter U Cobalt drill bit with a TiAlN finish, 135° point. Suited for aluminum, brass, carbon steel, cast iron, nickel alloy, plastics, stainless steel, tool steel. 1-13/16 flute length, 3-1/8 overall length. Series 2175A.

Specifications

Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit size0.3680
Drill bit size letterU
Drill bit size range0.3500 to 0.4000
Drill point angle135
Flute length in1-13/16
Flute typeParabolic
Material gradeM42
Overall length in3-1/8
Point typeSplit
Primary workpiece materialAluminum; Brass; Carbon Steel; Cast Iron; Nickel Alloy; Plastics; Stainless Steel; Tool Steel
Shank diameter0.3680
Shank typeStraight-Cylindrical
Specification designationANSI
Tool materialCobalt
Web configurationParallel
Web thinningWeb-Thinned
