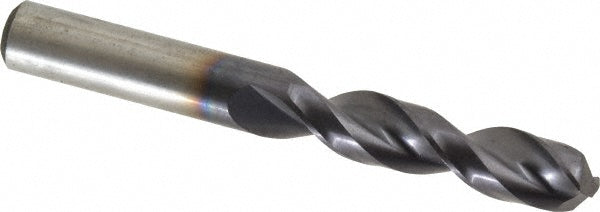

Letter Z Cobalt Drill Bit, TiAlN, 135° point - Cleveland C15155

Cleveland

Letter Z Cobalt Drill Bit, TiAlN, 135° point - Cleveland C15155

MFR# C15155Series 2175A

$46.68List $58.83 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
CoatingTiAlN

Description

The Cleveland C15155 is a Letter Z Cobalt drill bit with a TiAlN finish, 135° point. Suited for aluminum, brass, carbon steel, cast iron, nickel alloy, plastics, stainless steel, tool steel. 2 flute length, 3-3/8 overall length. Series 2175A.

Specifications

Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit size0.4130
Drill bit size letterZ
Drill bit size range0.4000 to 0.4500
Drill point angle135
Flute length in2
Flute typeParabolic
Material gradeM42
Overall length in3-3/8
Point typeSplit
Primary workpiece materialAluminum; Brass; Carbon Steel; Cast Iron; Nickel Alloy; Plastics; Stainless Steel; Tool Steel
Shank diameter0.4130
Shank typeStraight-Cylindrical
Specification designationANSI
Tool materialCobalt
Web configurationParallel
Web thinningWeb-Thinned
