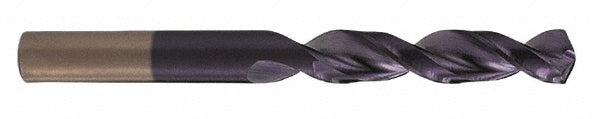

9/32" Cobalt Drill Bit, TiCN, 135° point - Cleveland C15264

Cleveland

9/32" Cobalt Drill Bit, TiCN, 135° point - Cleveland C15264

MFR# C15264Series 2175N

$21.47List $27.06 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Sold in multiples of 10 — minimum order 10

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size9/32
CoatingTiCN

Description

The Cleveland C15264 is a 9/32" Cobalt drill bit with a TiCN finish, 135° point. Suited for aluminum, brass, carbon steel, cast iron, nickel alloy, plastics, stainless steel, tool steel. 1-1/2 flute length, 2-11/16 overall length. Series 2175N.

Specifications

Coating finishTiCN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit size in9/32
Drill bit size range0.2500 to 0.3000
Drill point angle135
Flute length in1-1/2
Flute typeParabolic
Material gradeM42
Overall length in2-11/16
Point typeSplit
Primary workpiece materialAluminum; Brass; Carbon Steel; Cast Iron; Nickel Alloy; Plastics; Stainless Steel; Tool Steel
Shank diameter0.2813
Shank typeStraight-Cylindrical
Specification designationANSI
Tool materialCobalt
Web configurationParallel
Web thinningWeb-Thinned
