#19 Cobalt Drill Bit, TiCN, 135° point - Cleveland C15309

Cleveland

#19 Cobalt Drill Bit, TiCN, 135° point - Cleveland C15309

MFR# C15309Series 2175N

$12.93List $16.29 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Sold in multiples of 10 — minimum order 10

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
CoatingTiCN

Description

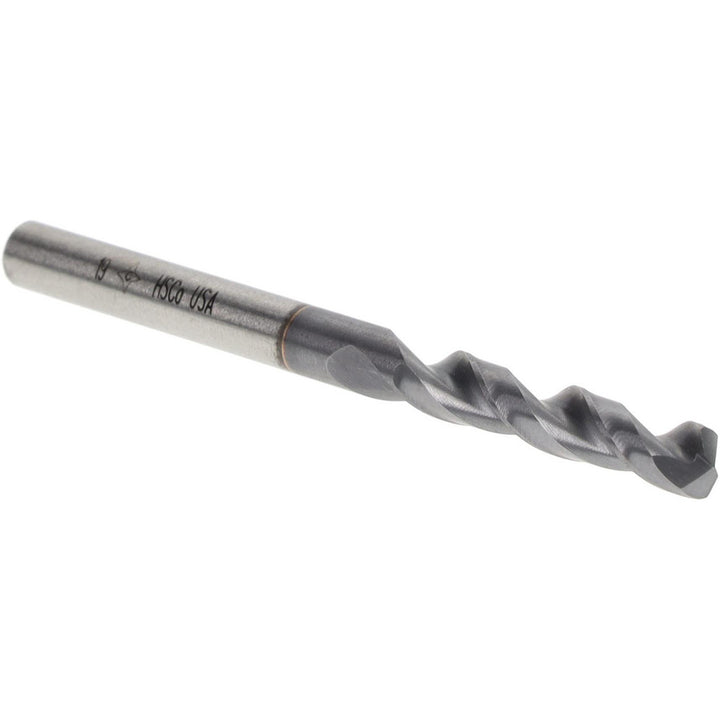

The Cleveland C15309 is a #19 Cobalt drill bit with a TiCN finish, 135° point. Suited for aluminum, brass, carbon steel, cast iron, nickel alloy, plastics, stainless steel, tool steel. 1-1/16 flute length, 2-1/8 overall length. Series 2175N.

Specifications

Coating finishTiCN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit size0.1660
Drill bit size range0.1500 to 0.2000
Drill bit size wire#19
Drill point angle135
Flute length in1-1/16
Flute typeParabolic
Material gradeM42
Overall length in2-1/8
Point typeSplit
Primary workpiece materialAluminum; Brass; Carbon Steel; Cast Iron; Nickel Alloy; Plastics; Stainless Steel; Tool Steel
Shank diameter0.1660
Shank typeStraight-Cylindrical
Specification designationANSI
Tool materialCobalt
Web configurationParallel
Web thinningWeb-Thinned
