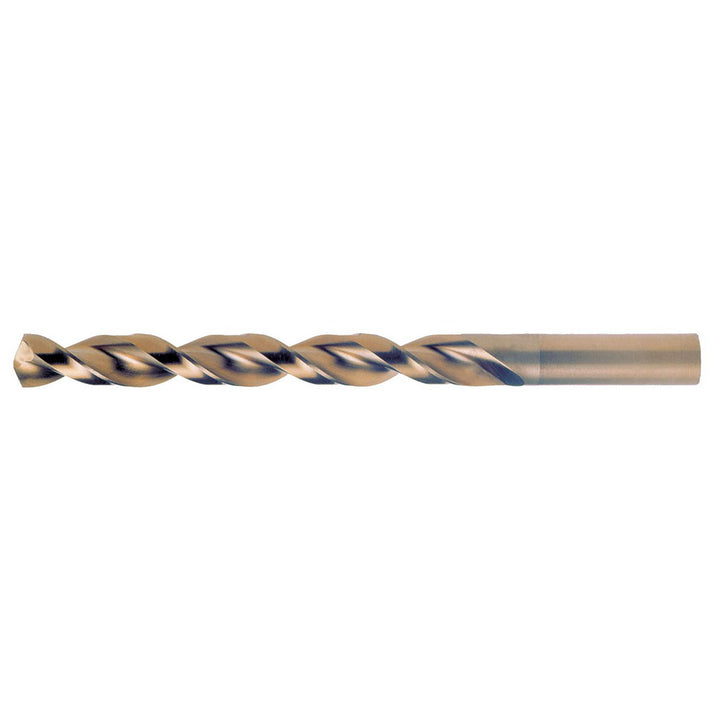

Letter F Cobalt Drill Bit, TiN, 135° point - Cleveland C15654

Cleveland

Letter F Cobalt Drill Bit, TiN, 135° point - Cleveland C15654

MFR# C15654Series 2075

$16.18List $20.75 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingTiN

Description

The Cleveland C15654 is a Letter F Cobalt drill bit with a TiN finish, 135° point. Suited for cast iron, non-ferrous metal, stainless steel, steel. Series 2075.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeHigh Performance
Drill bit materialCobalt
Drill bit size0.2570
Drill bit size letterF
Drill bit size range0.2500 - 0.3000
Drill point angle degrees135
Flute length2.8750
Flute typeParabolic
Material gradeM42
Number of flutes2
Overall length4.1250
Point typeSplit
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Shank diameter0.2570
Shank length1.2500
Shank typeStraight-Cylindrical
Specification designationANSI
StandardsASME B94.11M; DIN 338
Web configurationTapered
Web thinningWeb-Thinned
