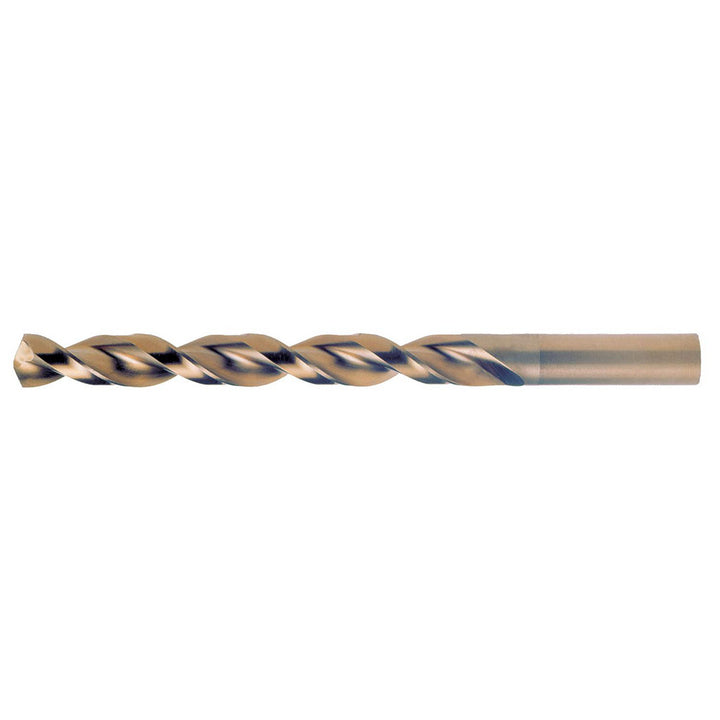

Letter Q Cobalt Drill Bit, TiN, 135° point - Cleveland C15665

Cleveland

Letter Q Cobalt Drill Bit, TiN, 135° point - Cleveland C15665

MFR# C15665Series 2075

$23.89List $30.64 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingTiN

Description

The Cleveland C15665 is a Letter Q Cobalt drill bit with a TiN finish, 135° point. Suited for cast iron, non-ferrous metal, stainless steel, steel. Series 2075.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeHigh Performance
Drill bit materialCobalt
Drill bit size0.3320
Drill bit size letterQ
Drill bit size range0.3000 - 0.3500
Drill point angle degrees135
Flute length3.4380
Flute typeParabolic
Material gradeM42
Number of flutes2
Overall length4.7500
Point typeSplit
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Shank diameter0.3320
Shank length1.3126
Shank typeStraight-Cylindrical
Specification designationANSI
StandardsASME B94.11M; DIN 338
Web configurationTapered
Web thinningWeb-Thinned
