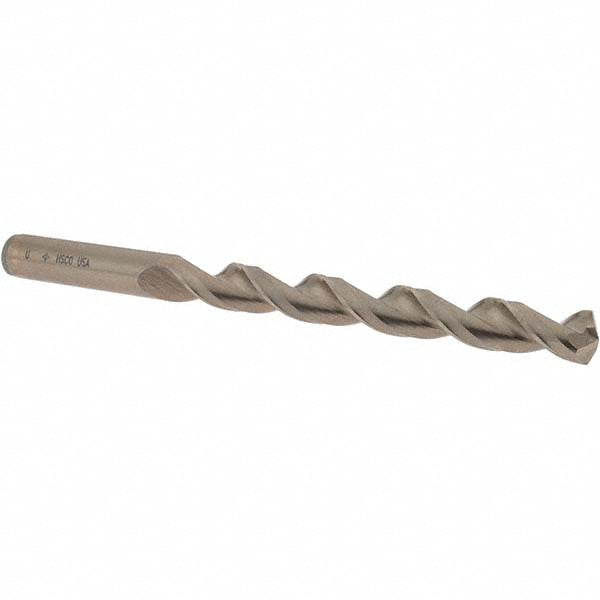

Letter U Cobalt Drill Bit, TiN, 135° point - Cleveland C15669

Cleveland

Letter U Cobalt Drill Bit, TiN, 135° point - Cleveland C15669

MFR# C15669Series 2075

$28.96List $37.14 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingTiN

Description

The Cleveland C15669 is a Letter U Cobalt drill bit with a TiN finish, 135° point. Suited for cast iron, non-ferrous metal, stainless steel, steel. 5 overall length. Series 2075.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeHigh Performance
Drill bit materialCobalt
Drill bit size0.3680
Drill bit size letterU
Drill bit size range0.3500 - 0.4000
Drill point angle degrees135
Flute length3.6250
Flute typeParabolic
Material gradeM42
Number of flutes2
Overall length in5
Point typeSplit
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Shank diameter0.3680
Shank length1.3748
Shank typeStraight-Cylindrical
Specification designationANSI
StandardsASME B94.11M; DIN 338
Web configurationTapered
Web thinningWeb-Thinned
