Cleveland

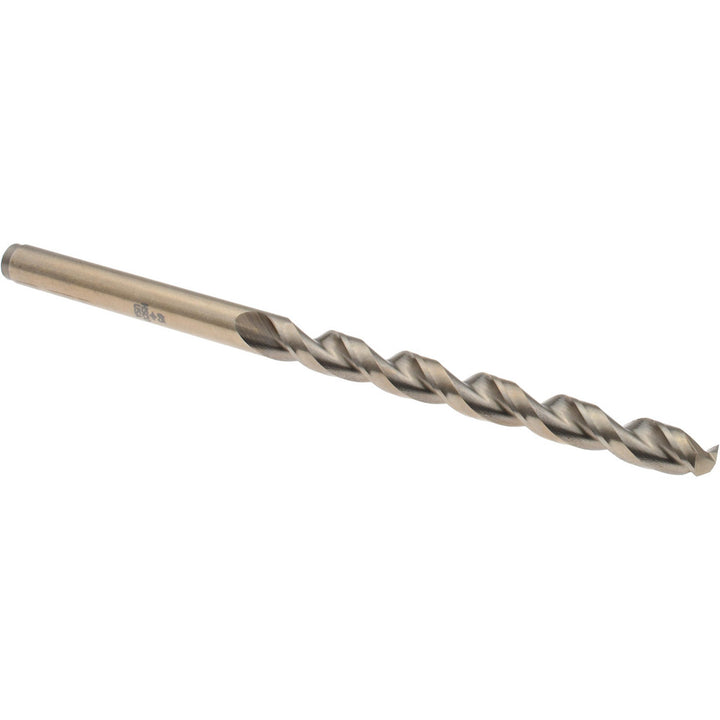

#5 Cobalt Drill Bit, Straw, 135° point - Cleveland C16507
MFR# C16507Series 2075
$14.94List $19.16
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingStraw
Description
The Cleveland C16507 is a #5 Cobalt drill bit with a Straw finish, 135° point. Suited for steel. 2-1/2 flute length, 3-3/4 overall length. Series 2075.
Specifications
Coating finishStraw
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0007 to 0.0000 in
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size0.2055
Drill bit size range0.2000 - 0.2500
Drill bit size wire#5
Drill point angle degrees135
Flute length in2-1/2
Flute typeParabolic
Material gradeM42
Number of flutes2
Overall length in3-3/4
Point typeSplit Point
Primary workpiece materialSteel
Shank diameter0.2055
Shank length1.2500
Shank typeStraight
Specification designationANSI
StandardsASME B94.11M; DIN 338
Web configurationTapered
Web thinningWeb-Thinned
