Cleveland

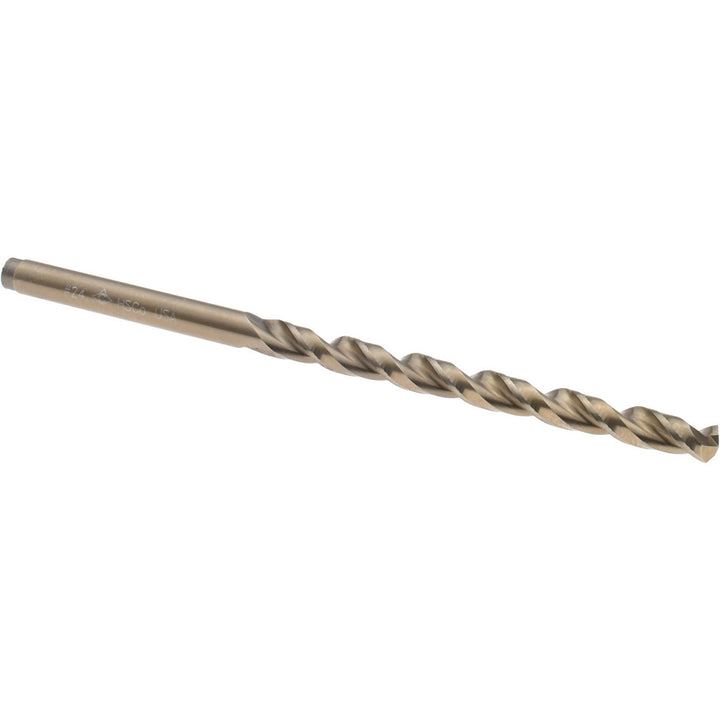

#24 Cobalt Drill Bit, Straw, 135° point - Cleveland C16526
MFR# C16526Series 2075
$10.51List $13.48
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingStraw
Description
The Cleveland C16526 is a #24 Cobalt drill bit with a Straw finish, 135° point. Suited for steel. 2 flute length, 3-1/8 overall length. Series 2075.
Specifications
Coating finishStraw
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0007 to 0.0000 in
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size0.1520
Drill bit size range0.1500 - 0.2000
Drill bit size wire#24
Drill point angle degrees135
Flute length in2
Flute typeParabolic
Material gradeM42
Number of flutes2
Overall length in3-1/8
Point typeSplit Point
Primary workpiece materialSteel
Shank diameter0.1520
Shank length1.1300
Shank typeStraight
Specification designationANSI
StandardsASME B94.11M; DIN 338
Web configurationTapered
Web thinningWeb-Thinned
