Cleveland
#30 Cobalt Drill Bit, Straw, 135° point - Cleveland C16532
MFR# C16532Series 2075
$8.83List $11.32
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingStraw
Description

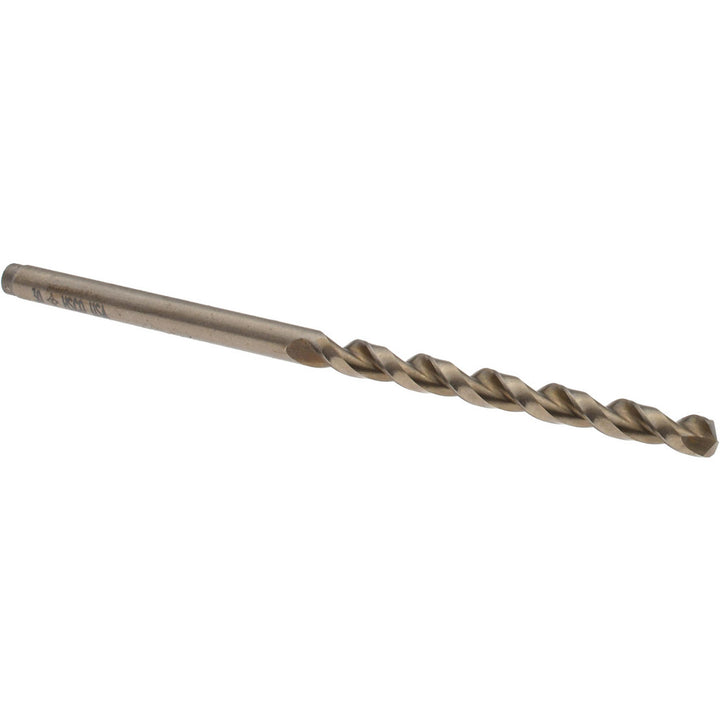

The Cleveland C16532 is a #30 Cobalt drill bit with a Straw finish, 135° point. Suited for steel. 1-5/8 flute length, 2-3/4 overall length. Series 2075.
Specifications
Coating finishStraw
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0007 to 0.0000 in
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size0.1285
Drill bit size range0.1000 - 0.1500
Drill bit size wire#30
Drill point angle degrees135
Flute length in1-5/8
Flute typeParabolic
Material gradeM42
Number of flutes2
Overall length in2-3/4
Point typeSplit Point
Primary workpiece materialSteel
Shank diameter0.1285
Shank length1.1300
Shank typeStraight
Specification designationANSI
StandardsASME B94.11M; DIN 338
Web configurationTapered
Web thinningWeb-Thinned
