Cleveland

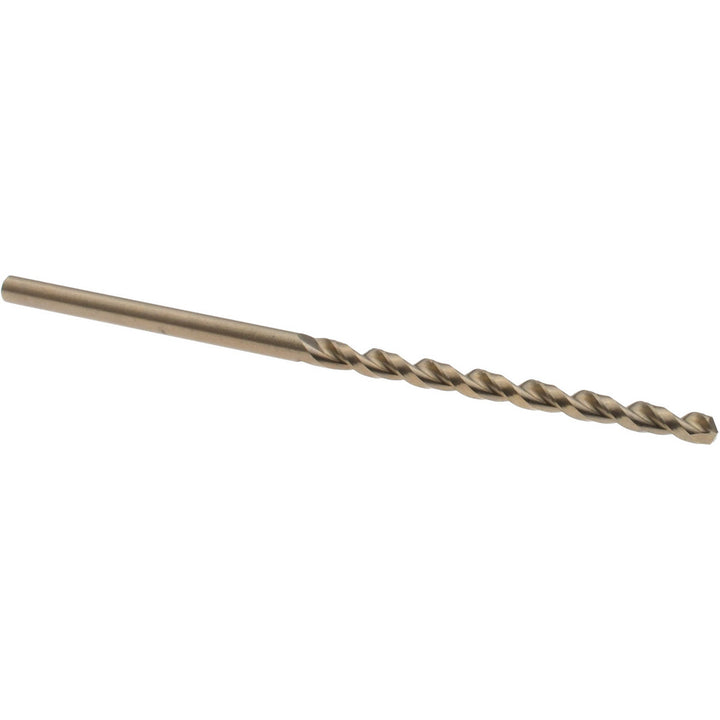

#46 Cobalt Drill Bit, Multi-layer, 135° point - Cleveland C16548
MFR# C16548
$7.58List $9.73
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingMulti-layer
Description
The Cleveland C16548 is a #46 Cobalt drill bit with a Multi-layer finish, 135° point. 1-1/8 flute length, 2-1/8 overall length.
Specifications
Coating finishMulti-layer
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0005 to 0.0000 in
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size0.0810
Drill bit size range0.0500 - 0.1000
Drill bit size wire#46
Drill point angle degrees135
Flute length in1-1/8
Flute typeParabolic
Material gradeM42
Overall length in2-1/8
Point typeSplit Point
Shank diameter0.0810
Shank typeStraight
Specification designationANSI
Web configurationTapered
Web thinningWeb-Thinned
