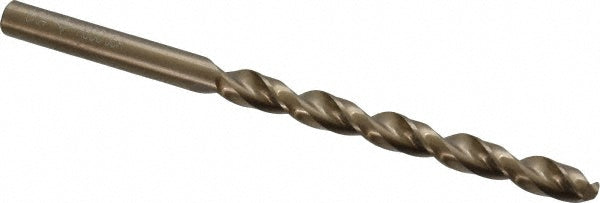

15/64" Cobalt Drill Bit, Straw, 135° point - Cleveland C16566

Cleveland

15/64" Cobalt Drill Bit, Straw, 135° point - Cleveland C16566

MFR# C16566Series 2075

$13.74List $17.62 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size15/64
Flutes2
CoatingStraw

Description

The Cleveland C16566 is a 15/64" Cobalt drill bit with a Straw finish, 135° point. Suited for steel. 2-5/8 flute length, 3-7/8 overall length. Series 2075.

Specifications

Coating finishStraw
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0007 to 0.0000 in
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size in15/64
Drill bit size range0.2000 - 0.2500
Drill point angle degrees135
Flute length in2-5/8
Flute typeParabolic
Material gradeM42
Number of flutes2
Overall length in3-7/8
Point typeSplit Point
Primary workpiece materialSteel
Shank diameter in15/64
Shank length1.2500
Shank typeStraight
Specification designationANSI
StandardsASME B94.11M; DIN 338
Web configurationTapered
Web thinningWeb-Thinned
