Cleveland

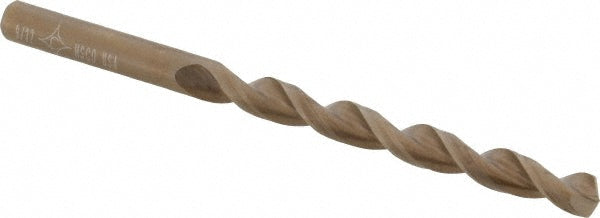

9/32" Cobalt Drill Bit, Straw, 135° point - Cleveland C16569
MFR# C16569Series 2075
$17.50List $22.45
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size9/32
Flutes2
CoatingStraw
Description
The Cleveland C16569 is a 9/32" Cobalt drill bit with a Straw finish, 135° point. Suited for steel. 2-15/16 flute length, 4-1/4 overall length. Series 2075.
Specifications
Coating finishStraw
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0010 to 0.0000 in
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size in9/32
Drill bit size range0.2500 - 0.3000
Drill point angle degrees135
Flute length in2-15/16
Flute typeParabolic
Material gradeM42
Number of flutes2
Overall length in4-1/4
Point typeSplit Point
Primary workpiece materialSteel
Shank diameter in9/32
Shank length1.3100
Shank typeStraight
Specification designationANSI
StandardsASME B94.11M; DIN 338
Web configurationTapered
Web thinningWeb-Thinned
