Cleveland

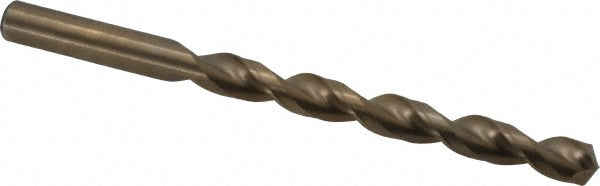

21/64" Cobalt Drill Bit, Gold; Oxide, 135° point - Cleveland C16572
MFR# C16572Series 2075
$23.14List $29.16
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size21/64
Flutes2
Description
The Cleveland C16572 is a 21/64" Cobalt drill bit with a Gold; Oxide finish, 135° point. Suited for cast iron, non-ferrous metal, stainless steel, steel. 3-5/16 flute length, 4-5/8 overall length. Series 2075.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0010 to 0.0000 in
Drill bit finish coatingGold; Oxide
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size in21/64
Drill bit size range0.3000 - 0.3500
Drill point angle degrees135
Flute length in3-5/16
Flute typeParabolic
Material gradeM42
Number of flutes2
Overall length in4-5/8
Point typeSplit
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Shank diameter in21/64
Shank length1.3100
Shank typeStraight-Cylindrical
Specification designationANSI
StandardsASME B94.11M; DIN 338
Web configurationTapered
Web thinningWeb-Thinned
