Cleveland
11/32" Cobalt Drill Bit, Straw, 135° point - Cleveland C16573
MFR# C16573Series 2075
$25.23List $31.79
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size11/32
Flutes2
CoatingStraw
Description

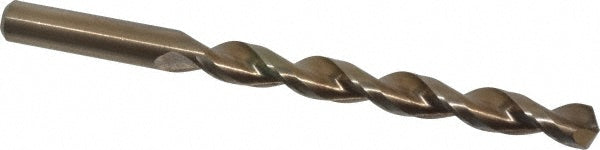

The Cleveland C16573 is a 11/32" Cobalt drill bit with a Straw finish, 135° point. Suited for steel. 3-7/16 flute length, 4-3/4 overall length. Series 2075.
Specifications
Coating finishStraw
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0010 to 0.0000 in
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size in11/32
Drill bit size range0.3000 - 0.3500
Drill point angle degrees135
Flute length in3-7/16
Flute typeParabolic
Material gradeM42
Number of flutes2
Overall length in4-3/4
Point typeSplit Point
Primary workpiece materialSteel
Shank diameter in11/32
Shank length1.3100
Shank typeStraight
Specification designationANSI
StandardsASME B94.11M; DIN 338
Web configurationTapered
Web thinningWeb-Thinned
