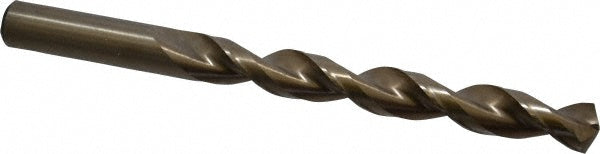

1/2" Cobalt Drill Bit, Gold; Oxide, 135° point - Cleveland C16583

Cleveland

1/2" Cobalt Drill Bit, Gold; Oxide, 135° point - Cleveland C16583

MFR# C16583Series 2075

$50.79List $65.15 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size1/2
Flutes2

Description

The Cleveland C16583 is a 1/2" Cobalt drill bit with a Gold; Oxide finish, 135° point. Suited for cast iron, non-ferrous metal, stainless steel, steel. 4-1/2 flute length, 6 overall length. Series 2075.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0010 to 0.0000 in
Drill bit finish coatingGold; Oxide
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size in1/2
Drill bit size range0.5000 - 0.6500
Drill point angle degrees135
Flute length in4-1/2
Flute typeParabolic
Material gradeM42
Number of flutes2
Overall length in6
Point typeSplit
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Shank diameter in1/2
Shank length1.5000
Shank typeStraight-Cylindrical
Specification designationANSI
StandardsASME B94.11M; DIN 338
Web configurationTapered
Web thinningWeb-Thinned
