Cleveland

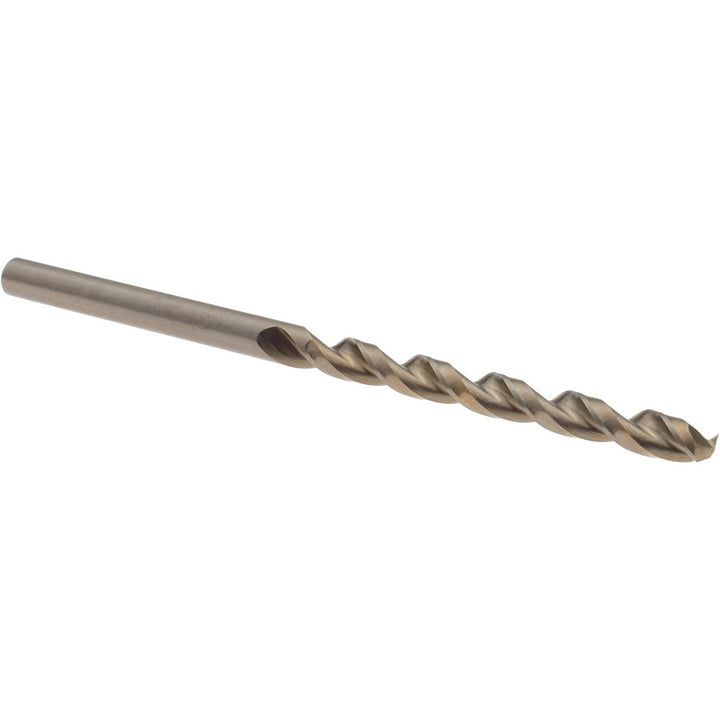

0.1378" Cobalt Drill Bit, Multi-layer, 135° point - Cleveland C16588
MFR# C16588
$9.62List $12.34
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingMulti-layer
Description
The Cleveland C16588 is a 0.1378" Cobalt drill bit with a Multi-layer finish, 135° point.
Specifications
Coating finishMulti-layer
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0007 to 0.0000 in
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size0.1378
Drill bit size range0.1000 - 0.1500
Drill point angle degrees135
Flute length1.5354
Flute typeParabolic
Material gradeM42
Overall length2.7560
Point typeSplit Point
Shank diameter0.1378
Shank typeStraight
Specification designationDIN
Specification numberDIN 338
Web configurationTapered
Web thinningWeb-Thinned
