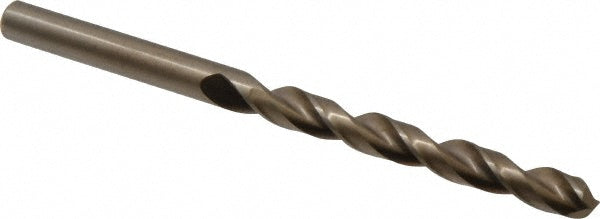

0.2559" Cobalt Drill Bit, Gold; Oxide, 135° point - Cleveland C16596

Cleveland

0.2559" Cobalt Drill Bit, Gold; Oxide, 135° point - Cleveland C16596

MFR# C16596Series 2075

$18.00List $23.08 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

The Cleveland C16596 is a 0.2559" Cobalt drill bit with a Gold; Oxide finish, 135° point. Suited for cast iron, non-ferrous metal, stainless steel, steel. Series 2075.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0010 to 0.0000 in
Drill bit finish coatingGold; Oxide
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size0.2559
Drill bit size range0.2500 - 0.3000
Drill point angle degrees135
Flute length2.4803
Flute typeParabolic
Material gradeM42
Number of flutes2
Overall length3.9760
Point typeSplit
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Shank diameter0.2559
Shank length1.5000
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
StandardsASME B94.11M; DIN 338
Web configurationTapered
Web thinningWeb-Thinned
