Cleveland

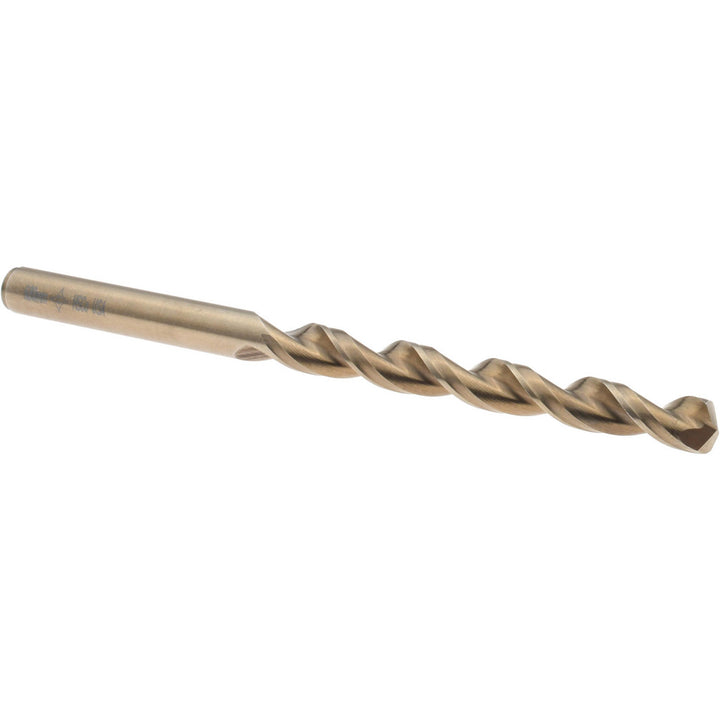

0.2677" Cobalt Drill Bit, Straw, 135° point - Cleveland C16597
MFR# C16597Series 2075
$19.45List $24.94
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingStraw
Description
The Cleveland C16597 is a 0.2677" Cobalt drill bit with a Straw finish, 135° point. Suited for steel. Series 2075.
Specifications
Coating finishStraw
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0010 to 0.0000 in
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size0.2677
Drill bit size range0.2500 - 0.3000
Drill point angle degrees135
Flute length2.7165
Flute typeParabolic
Material gradeM42
Number of flutes2
Overall length4.2910
Point typeSplit Point
Primary workpiece materialSteel
Shank diameter0.2677
Shank length1.5700
Shank typeStraight
Specification designationDIN
Specification numberDIN 338
StandardsASME B94.11M; DIN 338
Web configurationTapered
Web thinningWeb-Thinned
