Cleveland

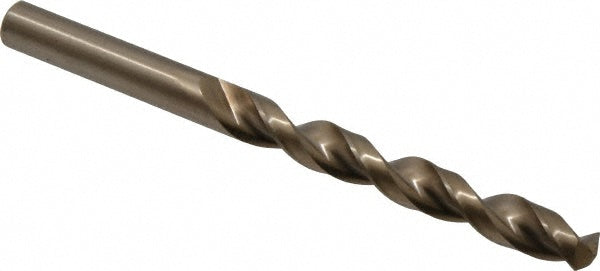

0.4331" Cobalt Drill Bit, Gold; Oxide, 135° point - Cleveland C16608
MFR# C16608Series 2075
$43.53List $55.82
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Cleveland C16608 is a 0.4331" Cobalt drill bit with a Gold; Oxide finish, 135° point. Suited for cast iron, non-ferrous metal, stainless steel, steel. Series 2075.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0010 to 0.0000 in
Drill bit finish coatingGold; Oxide
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size0.4331
Drill bit size range0.4000 - 0.5000
Drill point angle degrees135
Flute length3.7008
Flute typeParabolic
Material gradeM42
Number of flutes2
Overall length5.5910
Point typeSplit
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Shank diameter0.4331
Shank length1.8900
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
StandardsASME B94.11M; DIN 338
Web configurationTapered
Web thinningWeb-Thinned
