Cleveland

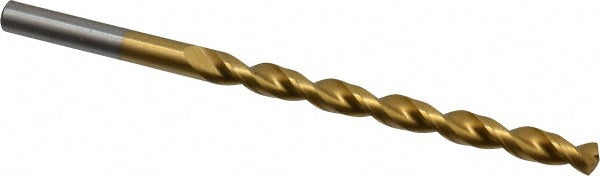

#12 Cobalt Drill Bit, TiN, 135° point - Cleveland C16623
MFR# C16623
$15.72List $20.16
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiN
Description
The Cleveland C16623 is a #12 Cobalt drill bit with a TiN finish, 135° point. 2-5/16 flute length, 3-1/2 overall length.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0007 to 0.0000 in
Drill bit finish coatingTitanium Nitride
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size0.1890
Drill bit size range0.1500 - 0.2000
Drill bit size wire#12
Drill point angle degrees135
Flute length in2-5/16
Flute typeParabolic
Material gradeM42
Overall length in3-1/2
Point typeSplit
Shank diameter0.1890
Shank typeStraight-Cylindrical
Specification designationANSI
Web configurationTapered
Web thinningWeb-Thinned
