Cleveland

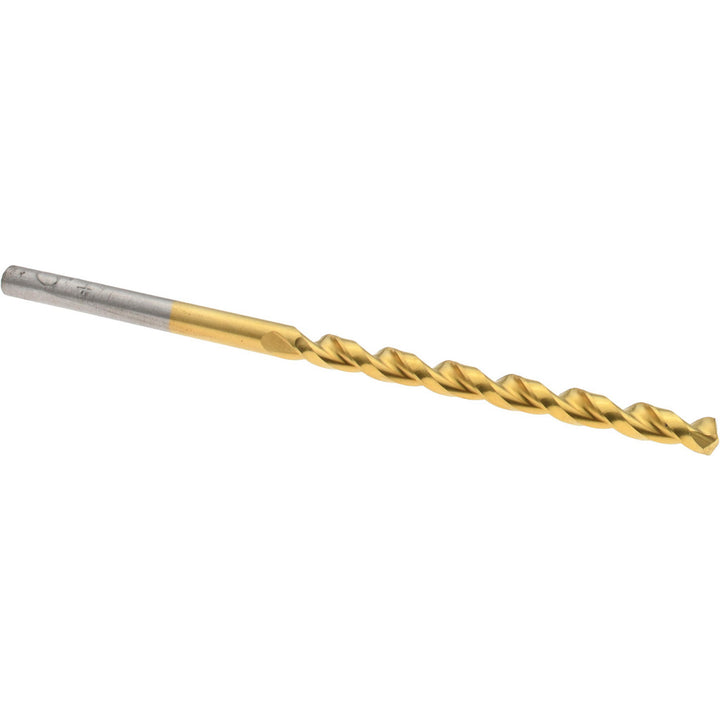

#34 Cobalt Drill Bit, TiN, 135° point - Cleveland C16646
MFR# C16646
$10.25List $13.14
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiN
Description
The Cleveland C16646 is a #34 Cobalt drill bit with a TiN finish, 135° point. 1-1/2 flute length, 2-5/8 overall length.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0005 to 0.0000 in
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size0.1110
Drill bit size range0.1000 - 0.1500
Drill bit size wire#34
Drill point angle degrees135
Flute length in1-1/2
Flute typeParabolic
Material gradeM42
Overall length in2-5/8
Point typeSplit Point
Shank diameter0.1110
Shank typeStraight
Specification designationANSI
Web configurationTapered
Web thinningWeb-Thinned
