Cleveland

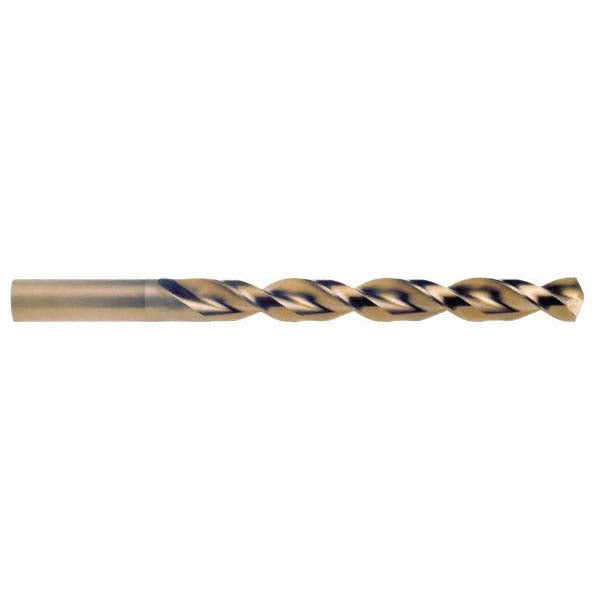

0.1575" Cobalt Drill Bit, TiN, 135° point - Cleveland C16701
MFR# C16701
$14.55List $18.67
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiN
Description
The Cleveland C16701 is a 0.1575" Cobalt drill bit with a TiN finish, 135° point.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0007 to 0.0000 in
Drill bit finish coatingTitanium Nitride
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size0.1575
Drill bit size range0.1500 - 0.2000
Drill point angle degrees135
Flute length1.6930
Flute typeParabolic
Material gradeM42
Overall length2.9530
Point typeSplit
Shank diameter0.1575
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
Web configurationTapered
Web thinningWeb-Thinned
