Cleveland

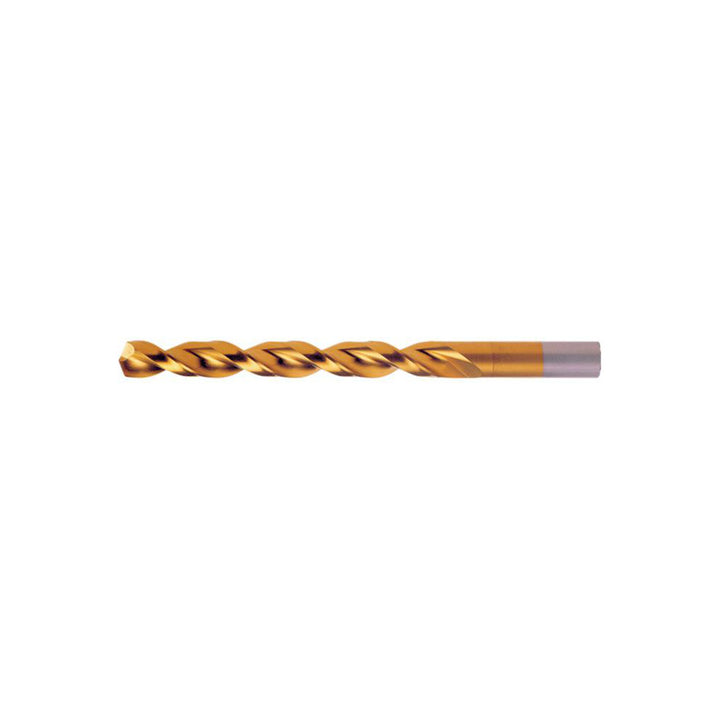

0.2559" Cobalt Drill Bit, TiN, 135° point - Cleveland C16708
MFR# C16708Series 2075T
$23.30List $29.89
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description
The Cleveland C16708 is a 0.2559" Cobalt drill bit with a TiN finish, 135° point. Series 2075T.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0010 to 0.0000 in
Drill bit finish coatingTitanium Nitride
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size0.2559
Drill bit size range0.2500 - 0.3000
Drill point angle degrees135
Flute length2.4800
Flute typeParabolic
Material gradeM42
Number of flutes2
Overall length3.9760
Point typeSplit
Shank diameter0.2559
Shank length1.5000
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
StandardsASME B94.11M; DIN 338
Web configurationTapered
Web thinningWeb-Thinned
