Cleveland

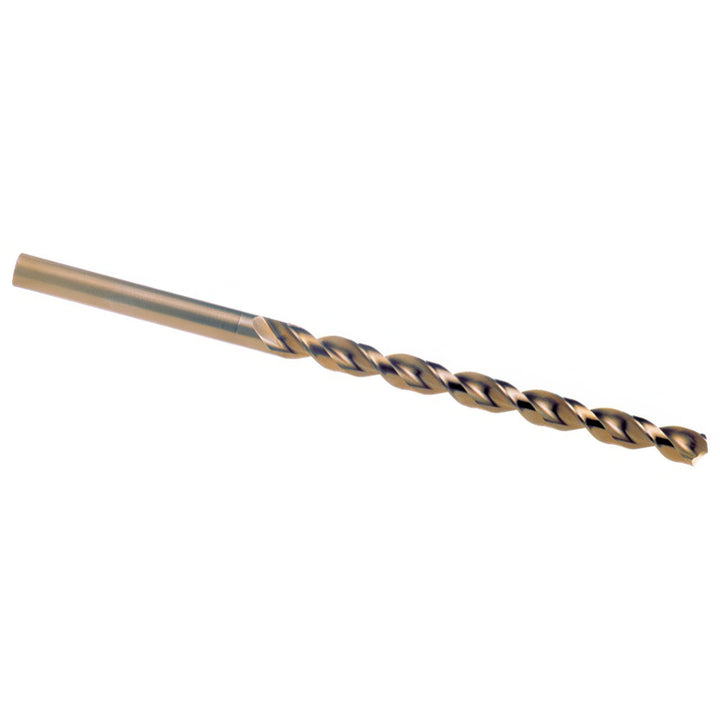

#29 Cobalt Drill Bit, Coated, 135° point - Cleveland C16752
MFR# C16752Series 2575
$29.89List $38.34
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingCoated
Description
The Cleveland C16752 is a #29 Cobalt drill bit with a Coated finish, 135° point. 3 flute length. Series 2575.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit gradeHeavy-Duty
Drill bit size0.1360
Drill bit size wire#29
Drill point angle degrees135
Flute length in3
Flute typeParabolic
Material applicationAluminum; Brass; Carbon Steel; Cast Iron; Nickel Alloy; Plastic; Stainless Steel; Tool Steel
Material gradeM42
Overall length5-3/8
Point typeSplit
Shank diameter0.1360
Shank length2.3750
Shank typeStraight
Specification numberDIN 338
StandardsASME B94.11M; DIN 340
Threaded shankNo
Tool materialCobalt
Web configurationTapered
Web thinningWeb-Thinned
