Cleveland

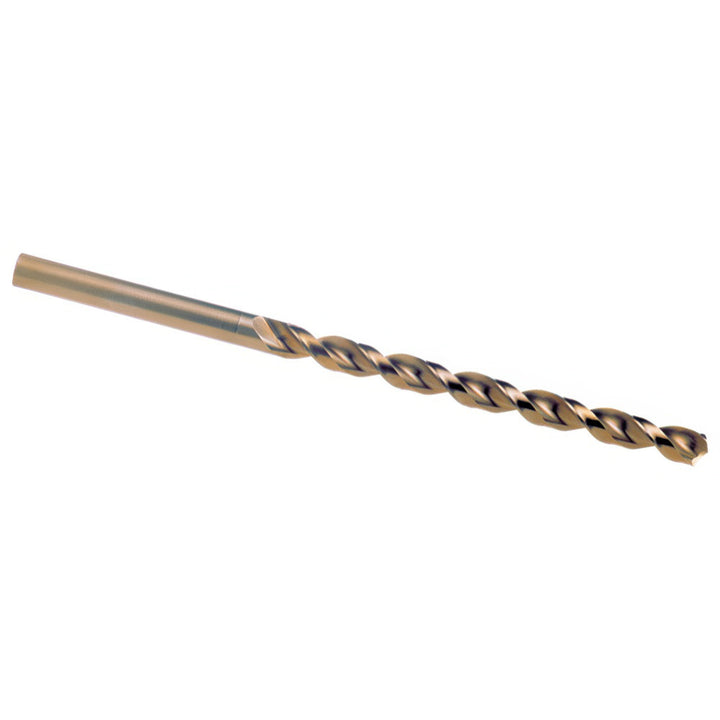

1/16" Cobalt Drill Bit, Coated, 135° point - Cleveland C16776
MFR# C16776Series 2575
$14.60List $18.73
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/16
CoatingCoated
Description
The Cleveland C16776 is a 1/16" Cobalt drill bit with a Coated finish, 135° point. 1-3/4 flute length. Series 2575.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit gradeHeavy-Duty
Drill bit size in1/16
Drill point angle degrees135
Flute length in1-3/4
Flute typeParabolic
Material applicationAluminum; Brass; Carbon Steel; Cast Iron; Nickel Alloy; Plastic; Stainless Steel; Tool Steel
Material gradeM42
Overall length3
Point typeSplit
Shank diameter in1/16
Shank length in1-1/4
Shank typeStraight
Specification numberDIN 338
StandardsASME B94.11M; DIN 340
Threaded shankNo
Tool materialCobalt
Web configurationTapered
Web thinningWeb-Thinned
