Cleveland

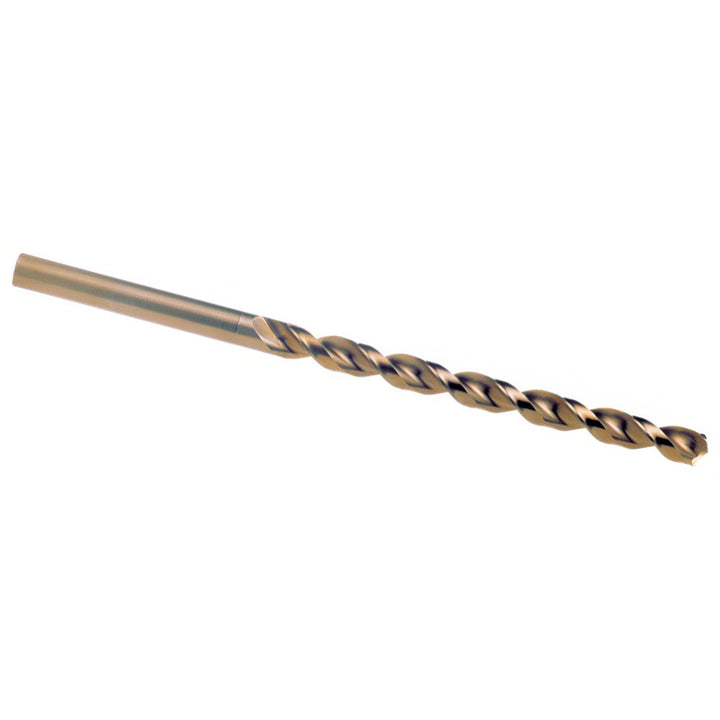

9/64" Cobalt Drill Bit, Coated, 135° point - Cleveland C16781
MFR# C16781Series 2575
$25.76List $33.04
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size9/64
CoatingCoated
Description
The Cleveland C16781 is a 9/64" Cobalt drill bit with a Coated finish, 135° point. 3 flute length. Series 2575.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit gradeHeavy-Duty
Drill bit size in9/64
Drill point angle degrees135
Flute length in3
Flute typeParabolic
Material applicationAluminum; Brass; Carbon Steel; Cast Iron; Nickel Alloy; Plastic; Stainless Steel; Tool Steel
Material gradeM42
Overall length5-3/8
Point typeSplit
Shank diameter in9/64
Shank length2.3750
Shank typeStraight
Specification numberDIN 338
StandardsASME B94.11M; DIN 340
Threaded shankNo
Tool materialCobalt
Web configurationTapered
Web thinningWeb-Thinned
