Cleveland
7/16" Cobalt Drill Bit, Coated, 135° point - Cleveland C16800
MFR# C16800Series 2575
$67.23List $86.23
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size7/16
CoatingCoated
Description

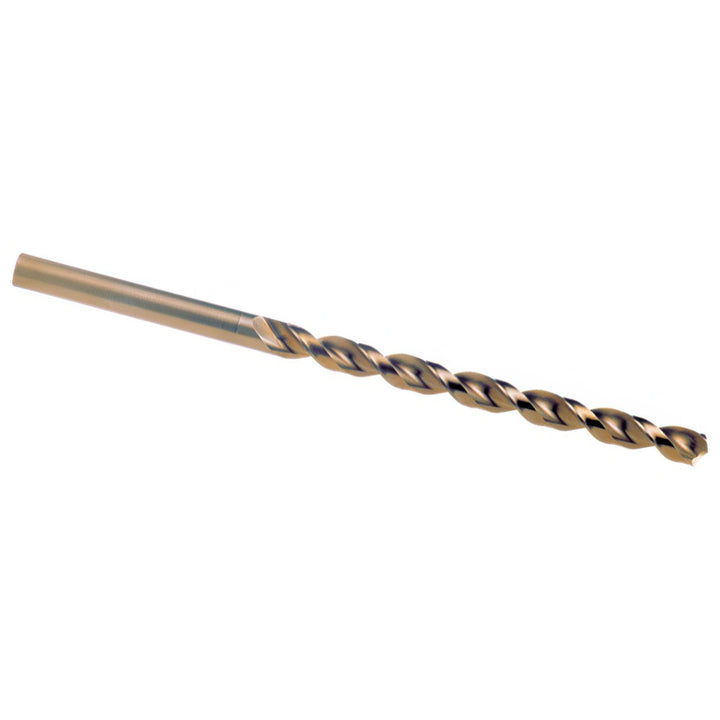

The Cleveland C16800 is a 7/16" Cobalt drill bit with a Coated finish, 135° point. 4-5/8 flute length. Series 2575.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeHeavy-Duty
Drill bit size in7/16
Drill point angle degrees135
Flute length in4-5/8
Flute typeParabolic
Material applicationAluminum; Brass; Carbon Steel; Cast Iron; Nickel Alloy; Plastic; Stainless Steel; Tool Steel
Material gradeM42
Overall length7-1/4
Point typeSplit
Shank diameter0.4375
Shank length2.6250
Shank typeStraight
Specification numberDIN 338
StandardsASME B94.11M; DIN 340
Threaded shankNo
Tool materialCobalt
Web configurationTapered
Web thinningWeb-Thinned
