Cleveland

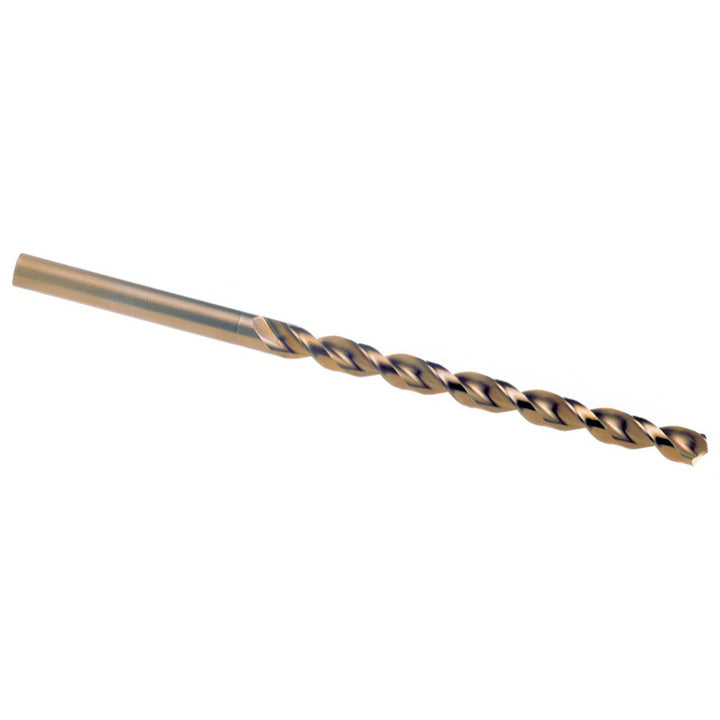

0.0591" Cobalt Drill Bit, Coated, 135° point - Cleveland C16805
MFR# C16805Series 2575
$21.52List $27.59
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingCoated
Description
The Cleveland C16805 is a 0.0591" Cobalt drill bit with a Coated finish, 135° point. Series 2575.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit gradeHeavy-Duty
Drill bit size0.0591
Drill point angle degrees135
Flute length1.7320
Flute typeParabolic
Material applicationAluminum; Brass; Carbon Steel; Cast Iron; Nickel Alloy; Plastic; Stainless Steel; Tool Steel
Material gradeM42
Point typeSplit
Shank diameter0.0591
Shank length0.9843
Shank typeStraight
Specification numberDIN 338
StandardsASME B94.11M; DIN 340
Threaded shankNo
Tool materialCobalt
Web configurationTapered
Web thinningWeb-Thinned
