Cleveland

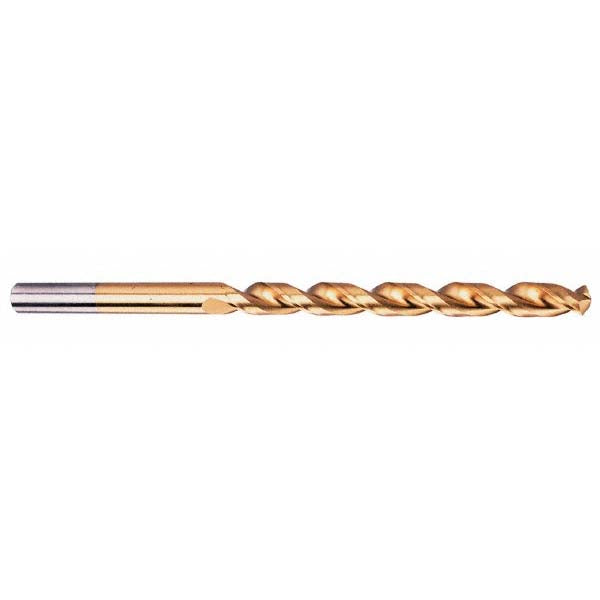

23/64" Cobalt Drill Bit, TiN, 135° point - Cleveland C16904
MFR# C16904Series 2575T
$75.39List $96.69
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size23/64
CoatingTiN
Description
The Cleveland C16904 is a 23/64" Cobalt drill bit with a TiN finish, 135° point. 4-1/4 flute length. Series 2575T.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeHeavy-Duty
Drill bit size in23/64
Drill point angle degrees135
Flute length in4-1/4
Flute typeParabolic
Material applicationAluminum; Brass; Carbon Steel; Cast Iron; Nickel Alloy; Plastic; Stainless Steel; Tool Steel
Material gradeM42
Overall length6-3/4
Point typeSplit
Shank typeStraight
Specification numberDIN 338
Tool materialCobalt
Web configurationTapered
Web thinningWeb-Thinned
