Cleveland

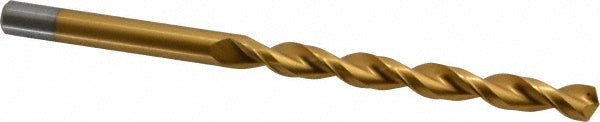

7/16" Cobalt Drill Bit, TiN, 135° point - Cleveland C16909
MFR# C16909Series 2575T
$91.42List $117.25
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size7/16
CoatingTiN
Description
The Cleveland C16909 is a 7/16" Cobalt drill bit with a TiN finish, 135° point. 4-5/8 flute length. Series 2575T.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeHeavy-Duty
Drill bit size in7/16
Drill point angle degrees135
Flute length in4-5/8
Flute typeParabolic
Material applicationAluminum; Brass; Carbon Steel; Cast Iron; Nickel Alloy; Plastic; Stainless Steel; Tool Steel
Material gradeM42
Overall length7-1/4
Point typeSplit
Shank typeStraight
Specification numberDIN 338
Tool materialCobalt
Web configurationTapered
Web thinningWeb-Thinned
