Cleveland
#30 Cobalt Drill Bit, TiCN, 135° point - Cleveland C16952
MFR# C16952
$12.86List $16.49
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiCN
Description

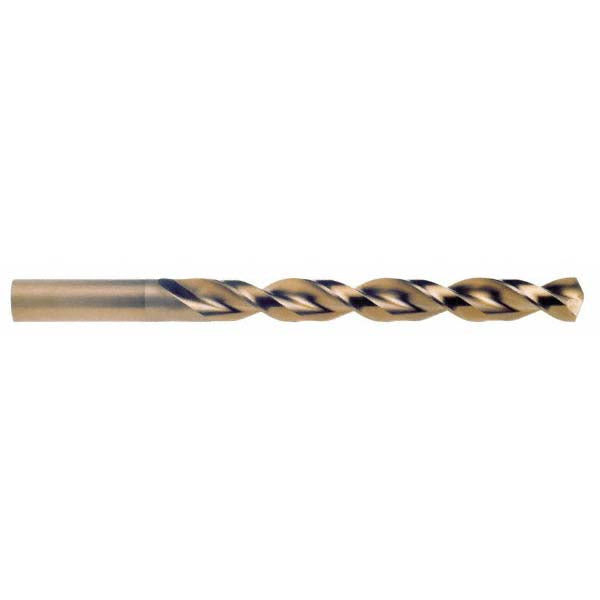

The Cleveland C16952 is a #30 Cobalt drill bit with a TiCN finish, 135° point. 1-5/8 flute length, 2-3/4 overall length.
Specifications
Coating finishTiCN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0007 to 0.0000 in
Drill bit finish coatingTiCN
Drill bit materialCobalt
Drill bit size0.1285
Drill bit size range0.1000 - 0.1500
Drill bit size wire#30
Drill point angle degrees135
Flute length in1-5/8
Flute typeParabolic
Material gradeM42
Overall length in2-3/4
Point typeStandard
Shank diameter0.1285
Shank typeStraight-Cylindrical
Specification designationANSI
Web configurationTapered
Web thinningWeb-Thinned
