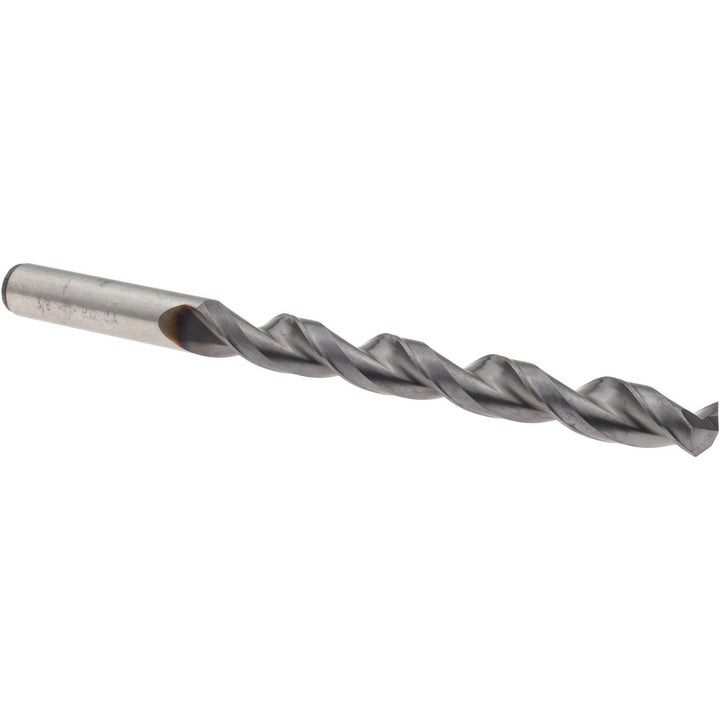

3/8" Cobalt Drill Bit, TiCN, 135° point - Cleveland C16969

Cleveland

3/8" Cobalt Drill Bit, TiCN, 135° point - Cleveland C16969

MFR# C16969

$45.57List $58.45 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size3/8
CoatingTiCN

Description

The Cleveland C16969 is a 3/8" Cobalt drill bit with a TiCN finish, 135° point. Suited for stainless steel, cast iron. 3-5/8 flute length, 5 overall length.

Specifications

Coating finishTiCN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0010 to 0.0000 in
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size in3/8
Drill bit size range0.3500 - 0.4000
Drill point angle degrees135
Flute length in3-5/8
Flute typeParabolic
Material gradeM42
Overall length in5
Point typeStandard
Primary workpiece materialStainless Steel; Cast Iron
Shank diameter0.3750
Shank typeStraight
Specification designationANSI
Web configurationTapered
Web thinningWeb-Thinned
