Cleveland

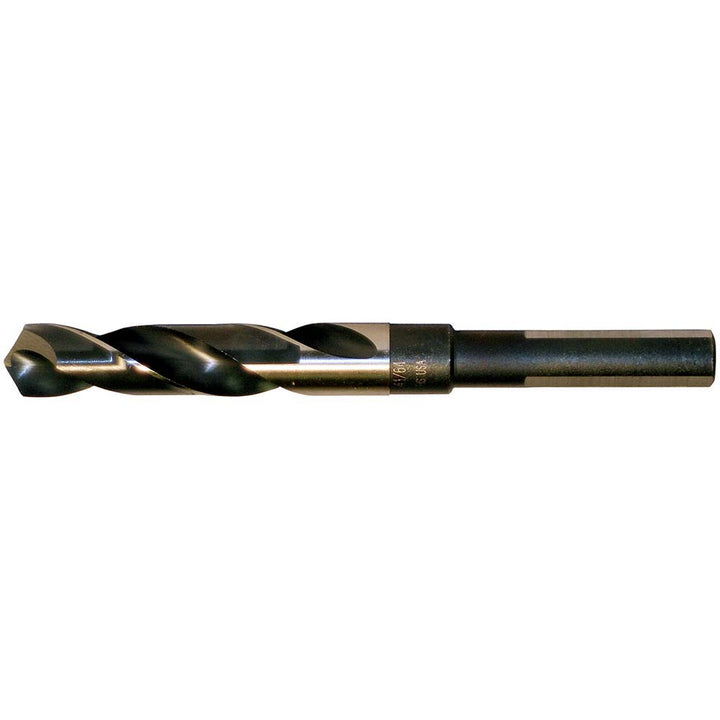

5/8" High-Speed Steel Reduced Shank Drill Bit, Coated, 118° point - Cleveland C17038
MFR# C17038Series 1877
$24.09List $30.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size5/8
Flutes2
CoatingCoated
Description
The Cleveland C17038 is a 5/8" High-Speed Steel Reduced Shank drill bit with a Coated finish, 118° point. Suited for cast iron, steel. 3-1/8 flute length, 6 overall length. Series 1877.
Specifications
Coating finishCoated
Drill bit size in5/8
Drill length typeReduced Shank
Drill point angle118
Flute length in3-1/8
Flute typeSpiral
Number of flats3
Number of flutes2
Overall length in6
Point typeSplit
Primary workpiece materialCast Iron; Steel
Shank diameter in1/2
Shank length2.2500
Shank typeWeldon Flat
Tool materialHigh-Speed Steel
Tool performanceGeneral Purpose
