Cleveland

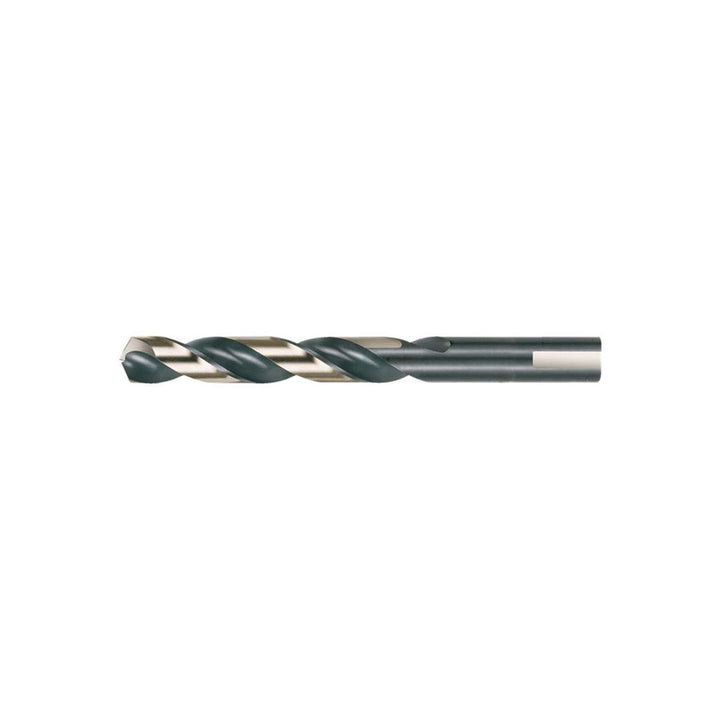

1/8" High-Speed Steel Mechanics Drill Bit, 135° point - Cleveland C23834
MFR# C23834Series 1875R
$1.69List $2.13
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 12 — minimum order 12
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/8
Description
The Cleveland C23834 is a 1/8" High-Speed Steel Mechanics drill bit, 135° point. Suited for cast iron, steel. 2-1/2 overall length. Series 1875R.
Specifications
Cutting directionRight Hand
Drill bit size in1/8
Drill length typeMechanics
Drill point angle135
Flute length1.4400
Flute typeSpiral
Number of pieces1
Overall length in2-1/2
Point typeSplit
Primary workpiece materialCast Iron; Steel
Shank diameter in1/8
Shank typeFlatted
StandardsASME B94.11M
Tool materialHigh-Speed Steel
Tool performanceGeneral Purpose
