Cleveland
3/4-16 UNF Powdered Metal Machine Tap, Nitride - Cleveland C27667
MFR# C27667Series SD CI1000
$120.71List $154.81
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size3/4-16
CoatingNitride
Description

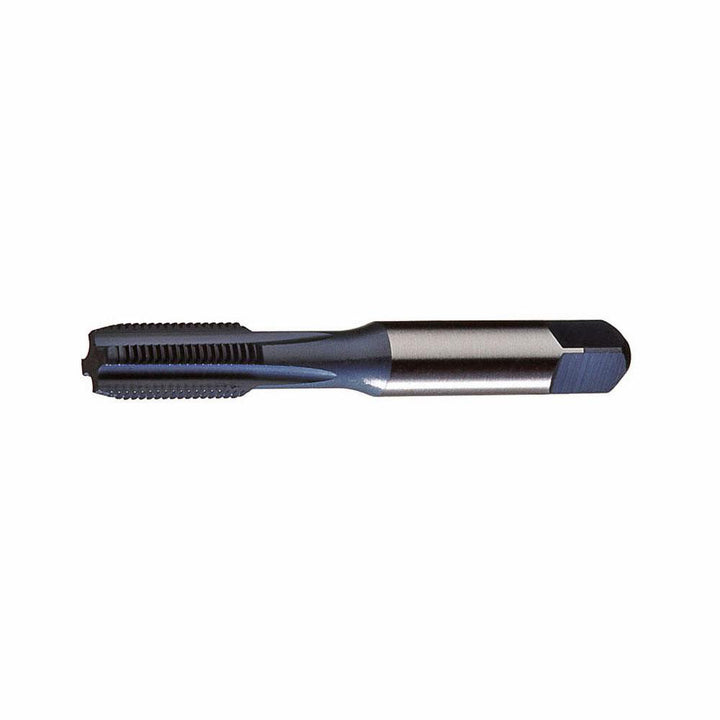

The Cleveland C27667 is a 3/4-16 UNF Powdered Metal Machine tap with a Nitride finish. 4 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coating finishNitride
Coolant throughNo
MaterialPowdered Metal
Material applicationCast Iron; Hardened Steel
Number of flutes4
Overall length in4-1/4
OversizeNo
Shank diameter0.5900
Square length in11/16
Square size0.4420
Tap typeMachine
Threads per inch16
Thread directionRight Hand
Thread length in2
Thread limitH5
Thread size in3/4-16
Thread standardUNF
