Cleveland

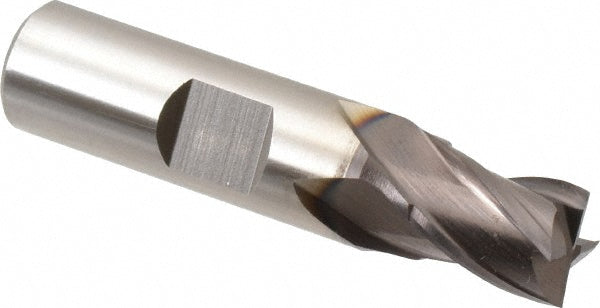

7/16" 4-Flute Powdered Metal Square End Mill, TiCN - Cleveland C31944
MFR# C31944Series PM-4
$78.18List $100.28
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter7/16
Flutes4
MaterialPowdered Metal
CoatingTiCN
Description
The Cleveland C31944 is a 7/16 4-flute Powdered Metal (M42) square end mill with a TiCN finish for longer tool life. 1/2 length of cut, 2-3/16 overall length. Series PM-4.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialPowdered Metal
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle37
Length of cut in1/2
Length of cut range0.5000 - 0.6000
Length typeStub
Material gradeM42
Mill diameter in7/16
Number of flutes4
Overall length in2-3/16
Shank diameter in1/2
Variable helixNo
Variable indexNo
