Cleveland
11/16" 4-Flute Powdered Metal Square End Mill, TiCN - Cleveland C32002
MFR# C32002Series PM-4
$91.67List $117.57
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter11/16
Flutes4
MaterialPowdered Metal
CoatingTiCN
Description

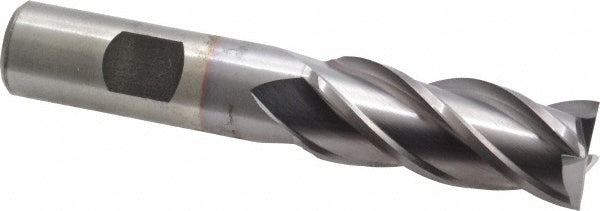

The Cleveland C32002 is a 11/16 4-flute Powdered Metal (M42) square end mill with a TiCN finish for longer tool life. 1-5/8 length of cut, 3-3/4 overall length. Series PM-4.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialPowdered Metal
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle37
Length of cut in1-5/8
Length of cut range1.5000 - 2.0000
Length typeRegular
Material gradeM42
Mill diameter in11/16
Number of flutes4
Overall length in3-3/4
Shank diameter in5/8
Shank typeStraight-Cylindrical; Weldon Flat
Variable helixNo
Variable indexNo
