Cleveland

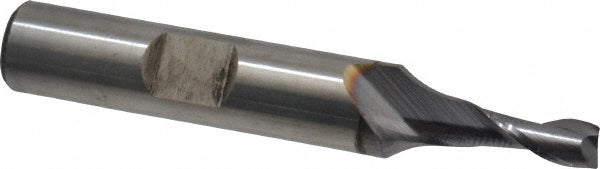

3/16" 2-Flute Cobalt Square End Mill, TiCN - Cleveland C32530

MFR# C32530Series HGC-2

$26.84List $34.42 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes2

MaterialCobalt

CoatingTiCN

Description

The Cleveland C32530 is a 3/16 2-flute Cobalt (M42) square end mill. Suited for high temperature alloy, stainless steel, steel. 7/16 length of cut, 2-3/8 overall length. Series HGC-2.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiCN

Cutting directionRight Hand

End mill materialCobalt

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in7/16

Length of cut range0.3000 - 0.5000

Length typeRegular

Material gradeM42

Mill diameter in3/16

Number of flutes2

Overall length in2-3/8

Primary workpiece materialHigh Temperature Alloy; Stainless Steel; Steel

Shank diameter in3/8

Shank typeStraight-Cylindrical; Weldon Flat

Variable helixNo

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
