Cleveland

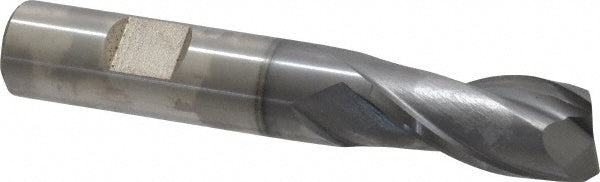

5/8" 2-Flute Cobalt Square End Mill, TiCN - Cleveland C32551

MFR# C32551Series HGC-2

$69.71List $89.40 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/8

Flutes2

MaterialCobalt

CoatingTiCN

Description

The Cleveland C32551 is a 5/8 2-flute Cobalt (M42) square end mill. Suited for high temperature alloy, stainless steel, steel. 1-5/16 length of cut, 3-1/4 overall length. Series HGC-2.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiCN

Cutting directionRight Hand

End mill materialCobalt

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1-5/16

Length of cut range1.2500 - 1.5000

Length typeRegular

Material gradeM42

Mill diameter in5/8

Number of flutes2

Overall length in3-1/4

Primary workpiece materialHigh Temperature Alloy; Stainless Steel; Steel

Shank diameter in5/8

Shank typeStraight-Cylindrical; Weldon Flat

Variable helixNo

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
