Cleveland

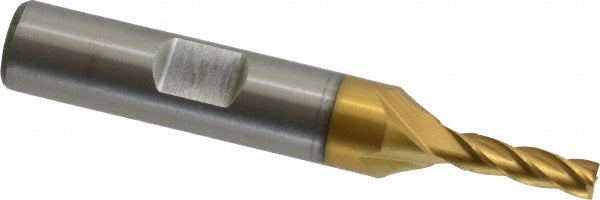

5/32" 4-Flute Cobalt Square End Mill, TiN - Cleveland C32575
MFR# C32575Series HGC-4C
$30.74List $39.42
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/32
Flutes4
MaterialCobalt
CoatingTiN
Description
The Cleveland C32575 is a 5/32 4-flute Cobalt (M42) square end mill. Suited for high temperature alloy, stainless steel, steel. 1/2 length of cut, 2-3/8 overall length. Series HGC-4C.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishTiN
Cutting directionRight Hand
End mill materialCobalt
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1/2
Length of cut range0.5000 - 0.6000
Length typeRegular
Material gradeM42
Mill diameter in5/32
Number of flutes4
Overall length in2-3/8
Primary workpiece materialHigh Temperature Alloy; Stainless Steel; Steel
Shank diameter in3/8
Shank typeStraight-Cylindrical; Weldon Flat
Variable helixNo
Variable indexNo
