Cleveland

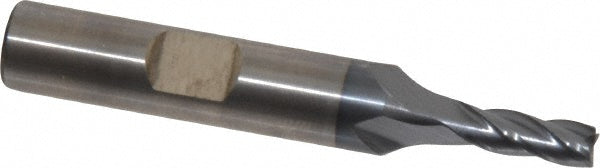

3/16" 4-Flute Cobalt Square End Mill, TiCN - Cleveland C32613

MFR# C32613Series HGC-4C

$31.05List $39.83 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes4

MaterialCobalt

CoatingTiCN

Description

The Cleveland C32613 is a 3/16 4-flute Cobalt (M42) square end mill. Suited for high temperature alloy, stainless steel, steel. 1/2 length of cut, 2-3/8 overall length. Series HGC-4C.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiCN

Cutting directionRight Hand

End mill materialCobalt

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1/2

Length of cut range0.5000 - 0.6000

Length typeRegular

Material gradeM42

Mill diameter in3/16

Number of flutes4

Overall length in2-3/8

Primary workpiece materialHigh Temperature Alloy; Stainless Steel; Steel

Shank diameter in3/8

Shank typeStraight-Cylindrical; Weldon Flat

Variable helixNo

Variable indexNo
