Cleveland

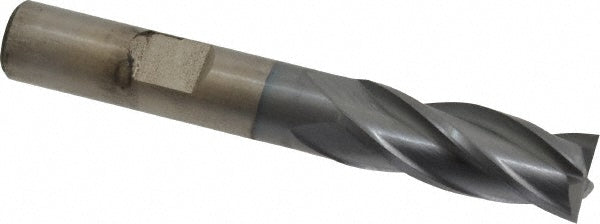

13/32" 4-Flute Cobalt Square End Mill, TiCN - Cleveland C32627

MFR# C32627Series HGC-4C

$45.34List $58.15 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter13/32

Flutes4

MaterialCobalt

CoatingTiCN

Description

The Cleveland C32627 is a 13/32 4-flute Cobalt (M42) square end mill. Suited for high temperature alloy, stainless steel, steel. 1 length of cut, 2-11/16 overall length. Series HGC-4C.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiCN

Cutting directionRight Hand

End mill materialCobalt

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1

Length of cut range1.0000 - 1.2500

Length typeRegular

Material gradeM42

Mill diameter in13/32

Number of flutes4

Overall length in2-11/16

Primary workpiece materialHigh Temperature Alloy; Stainless Steel; Steel

Shank diameter in3/8

Shank typeStraight-Cylindrical; Weldon Flat

Variable helixNo

Variable indexNo
