Cleveland

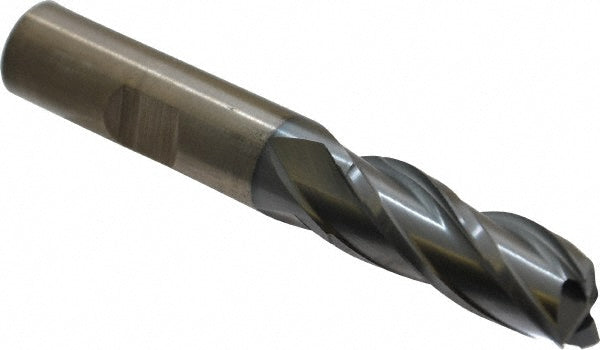

1/2" 4-Flute Cobalt Square End Mill, TiCN - Cleveland C32633

MFR# C32633Series HGC-4C

$42.79List $54.88 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes4

MaterialCobalt

CoatingTiCN

Description

The Cleveland C32633 is a 1/2 4-flute Cobalt (M42) square end mill. Suited for high temperature alloy, stainless steel, steel. 1-1/4 length of cut, 3-1/4 overall length. Series HGC-4C.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiCN

Cutting directionRight Hand

End mill materialCobalt

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1-1/4

Length of cut range1.2500 - 1.5000

Length typeRegular

Material gradeM42

Mill diameter in1/2

Number of flutes4

Overall length in3-1/4

Primary workpiece materialHigh Temperature Alloy; Stainless Steel; Steel

Shank diameter in1/2

Shank typeStraight-Cylindrical; Weldon Flat

Variable helixNo

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
